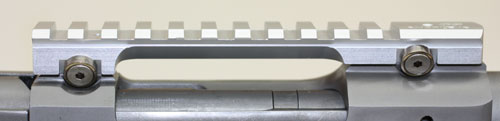

This Photo is The Ruger M77 Mount Short Action
The X in the part number signifies the adjustable recoil lug

NOTE: We have left hand models in stock for the following part numbers
M77XB M77XS    M77LXB M77LXS    M77LX20B M77LX20S
Please order the model you want and in the shopping cart Order Comments
box let us know you want the left hand version
An email with the order will also work

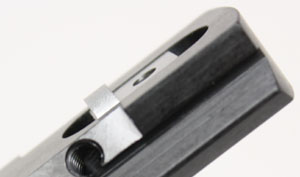

Adjustable Recoil Lug on All M77X and M77LX Model Scope Mounts

Ruger M77,  M77 MKII and Hawkeye Rifle Scope Mount WEIG-A-TINNY^®
Fits Weaver and Picatinny style attachments

NOTE: Not for use on the following calibers
338 Winchester Magnum
375 H&H Magnum Caliber
375 Ruger
416 Ruger
Bullet weight times velocity should not exceed 700,000

M77 and M77 MKII and Hawkeye WEIG-A-TINNY^® Style Scope Mount-Our Newest Scope Mount in the Ruger Rifle line. This mount converts the Ruger scope ring attaching points to a WEIG-A-TINNY^® Picatinny Weaver style mounting point.
To determine if your rifle is the short action you need to measure from the center of the rear scope ring slot on the top of the receiver to the center of the front scope ring slot. The short action is 4” long, approximately 1/4" larger readings are the long action.

Accepts all Weaver and Picatinny style rings and accessories.
Body made from 6061-T6 Aluminum the recoil lug is mild steel.
Available in black or silver, matte anodized finish, weighs 3.1 ounces.

Installation Video

Save 20% On The Rings
CLICK HERE FOR COMBO DETAILS

M77LXS

Ruger M77 MKII Long Action X - Silver

$79.95

Scope Mount Only

Add To Cart

Scope Mount &
Scope Ring Combo

Add To Cart

M77LXB

Ruger M77 MKII Long Action X - Black

$79.95

Scope Mount Only

Add To Cart

Scope Mount &
Scope Ring Combo

Add To Cart

M77LX20S

Ruger M77 MKII Long Action X 20 MOA - Silver

$79.95

Scope Mount Only

Add To Cart

M77LX20B

Ruger M77 MKII Long Action X 20 MOA - Black

$79.95

Scope Mount Only

Add To Cart

View Cart

Save 20% On The Rings
CLICK HERE FOR COMBO DETAILS

M77XS

Ruger M77 MKII Short Action X - Silver

$69.95

Scope Mount Only

Add To Cart

Scope Mount &
Scope Ring Combo

Add To Cart

M77XB

Ruger M77 MKII Short Action X - Black

$69.95

Scope Mount Only

Add To Cart

Scope Mount &
Scope Ring Combo

Add To Cart

M77X20S

Ruger M77 MKII Short Action X 20 MOA - Silver

$69.95

Scope Mount Only

Add To Cart

M77X20B

Ruger M77 MKII Short Action X 20 MOA - Black

$69.95

Scope Mount Only

Add To Cart

View Cart

How To Determine
If You Have A Long
Or Short Action M77
