Weigand Smith & Wesson competition rear sight blade

Smith & Wesson Rear Sight Blade
K L N and X frame revolvers
Will work on all with of the above
Smith & Wesson adjustable sights

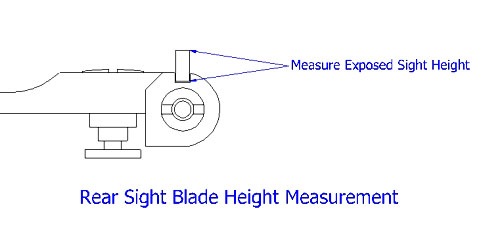

Blade height is .160"

Menu

Enhanced Rear Sight Blade For SMITH & WESSON Revolvers

NOW NRA P.P.C. Approved for
Open Gun Division = Open Class Revolver and Distinguished Revolver Matches
Stock Duty Gun Division = Stock Service Revolver and Stock Off Duty Revolver Matches
Click the following link for the NRA Bulletin: http://ppc.nra.org/documents/pdf/law/competitions/bulletin13-1.pdf




Smith&Wesson rear sight blade

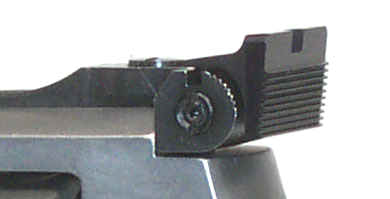

See more photos below
Blade specifications
.160 High Blade (same height as .160 Smith blade)
Available notch widths
.110 (Target or PPC)
.125 (Combat or PPC)
.140 (Speed or PPC)
Blade material 6061-T6 Heat treated Aluminum Requires Windage screw assembly for installation.
CAD Designed
CNC Machined
This product should be installed buy a skilled Pistolsmith
Advantages
True Combat sight picture (Similar to Bo-Mar, Wilson, Aristocrat etc)
Rear sight notch width choice, .110, .125, .140
Notch is deeper
Rear surface angled for reduced glare (stock sight is straight)
Slight sight radius increase



Our "NEW" Smith & Wesson Enhanced rear sight blade.

Now the sight picture you have always wanted for your S&W revolver. Available in three notch widths, .110 (target, PPC) .125 (combat, IPSC, IDPA) .140 (Speed shooting). The blade requires a windage adjustment screw kit.

Sorry we are not currently doing rear sight installations.

NOTE: We do not suggest amateur installation, the blade should be installed by a skilled Pistolsmith

Blade height is .160 and the material is 6061-T6 heat treated Aluminum.


SW110

Black .110 wide notch

Discontinued

SW125

Black .125 wide notch

$19.95

SW140

Black .140 wide notch

Discontinued

SWWSK

Windage Screw Kit

Discontinued


View Cart
SW110 Black .110 wide notch Discontinued
SW125 Black .125 wide notch $19.95
Add To Cart
SW140 Black .140 wide notch Discontinued
SWWSK Windage Screw Kit Discontinued
View Cart


Click This To Try Our Point of Impact Adjustment Formula



 Iron Sights

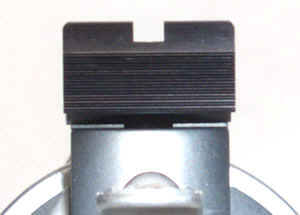

Rear view   S&W rear sight blade
