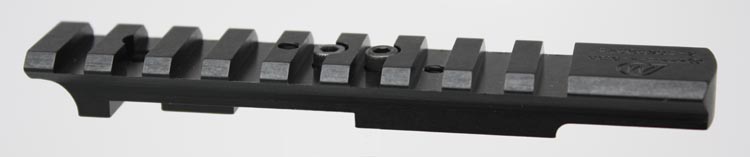

Redesigned in our WEIG-A-TINNY® Style to fit Weaver and Picatinny Attachments
Retrofits medium and large frame Taurus revolvers with factory adjustable sights. Requires
drilling and tapping two 6-40 holes through the top strap. Extra large recoil lug prevents scope movement
even on magnum caliber's. Accepts all Weaver and Picatinny style rings and accessories.
NEW DESIGN NOTES: (8/28/2017) to address the TAURUS
revolver top strap variations. We are using two 8-32 Brass socket set screws
(supplied) as the front supports of the mount. After drilling and tapping
your revolver you install the mount as usual and adjust the two set screws
to touch the top strap then tighten the attaching screws. This allows for
most top strap variations. For flat top style receivers you must mill off
radiused section on the scope mount bottom for it to work.
We have also
just encountered a new flatter radius on a 2017 production revolver and our
mount will also need to be modified to fit that top strap. If you encounter
issues mounting this scope mount please send us a photo of the issue so we
can further
assist you with how to proceed. We are sorry but there are so
many variations of the Taurus top strap we are having a hard time addressing
them all.
4-1/2" in length, 6061 T-6 Hardened Aluminum, available in black or silver matte anodized finish, weight 1.3 ounces.
Attaching screws are 6-40, set screws are 8-32 Brass and all are included.
TAURUSDTS-2
Taurus Revolver Drill and Tap Scope Mount - Silver
Scope Mount Only
Scope Mount &
Scope Ring Combo
TAURUSDTB-2
Taurus Revolver Drill and Tap Scope Mount - Black
Scope Mount Only
Scope Mount &
Scope Ring Combo
|
|
Scope Mount Only |
Scope Mount And Scope Ring Combo $71.91 |
||
|---|---|---|---|---|
| TAURUSDTS-2 | Taurus Revolver Drill and Tap Scope Mount - Silver | $39.95 |
Add To Cart
|
Add To Cart
|
| TAURUSDTB-2 | Taurus Revolver Drill and Tap Scope Mount - Black | $39.95 |
Add To Cart
|
Add To Cart
|
| View Cart | ||||
